GSM Series Static Mixing Tube – High-Efficiency Mixing Nozzle for Adhesives
With a remarkable mixing power of 8 N, the GSM Series significantly outperforms standard mixing pipes, which typically achieve only 2 N of mixing power. Experience unparalleled mixing effectiveness and efficiency with our state-of-the-art static mixing tubes, tailored to meet your demanding mixing requirements.Transform your mixing processes and achieve superior results with the GSM Series!
Description

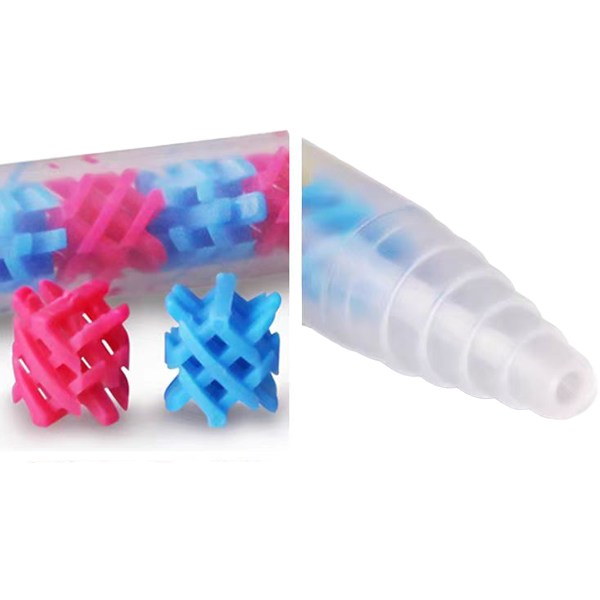

Introducing the GSM Series Static Mixing Tubes, featuring an innovative X-type structure that delivers mixing efficiency 3 to 10 times greater than conventional spiral and square static mixing tubes. Designed specifically for high-performance applications, these tubes excel in quickly mixing high-viscosity adhesives, sealants, paints, and other thick materials.
| No. | Part No. | Elements | I.D. (mm) | O.D. (mm) | L (mm) | A (mm) | Inner-core Color |
|---|---|---|---|---|---|---|---|
| G1 | GSM9-10LL | 10 | 9.4 | 12.4 | 144.18 | 2.54 | White/Yellow |
| G2 | GSM9-12T | 12 | 9.4 | 12.63 | 145.14 | 2.96 | White/Yellow |
| G3 | GSM9-13T | 13 | 9.4 | 12.38 | 145.32 | 2.95 | White/Yellow |
| G4 | GSM9-14T | 14 | 9.4 | 12.34 | 163.59 | 2.93 | White/Blue |
| G5 | GSM9-16T | 16 | 9.4 | 12.55 | 183.57 | 2.98 | White/Blue |
| G6 | GSM9.3-16L | 16 | 9.4 | 12.4 | 195.5 | 3.08 | White/Blue |
| G7 | GSM9-20T | 20 | 9.4 | 12.55 | 219.93 | 2.99 | Blue/Red |
| G8 | GSM9-21T | 21 | 9.4 | 12.56 | 219.54 | 2.99 | Blue/Red |
